Zoom H1 digital recorder

Zoom H1 digital recorder
click for larger view of a plot of the low frequency plot for the Zoom H1 digital recorder

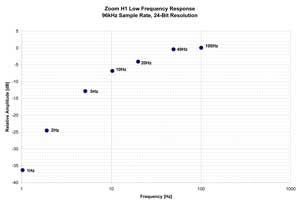

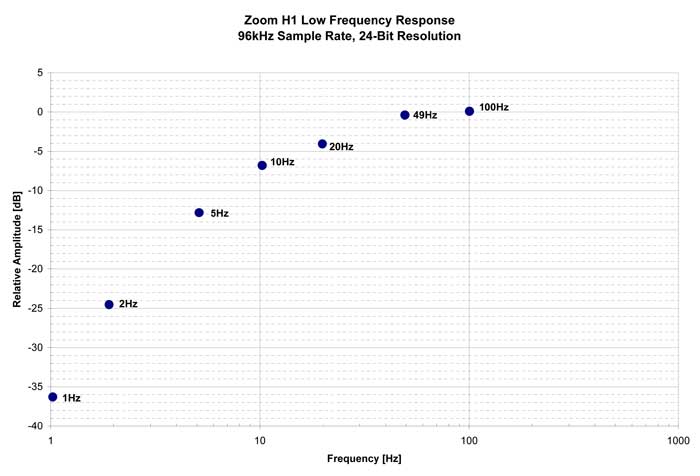

Zoom H1 Low Frequency Response Plot
(click on image to see enlargement)


click for larger view of a plot of the high frequency plot for the Zoom H1 digital recorder

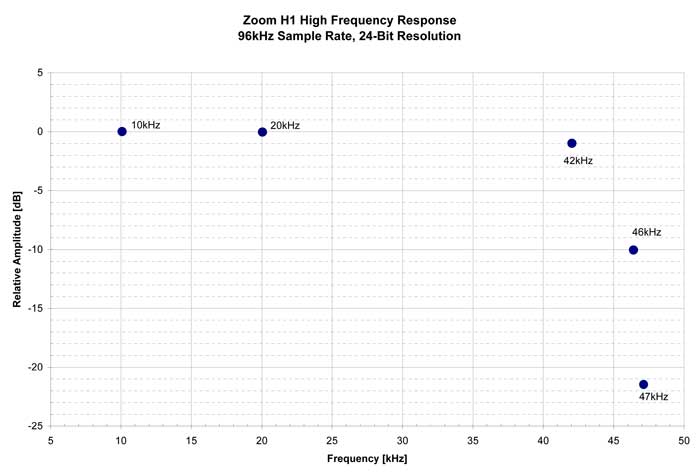

Zoom H1 High Frequency Response Plot
(click on image to see enlargement)

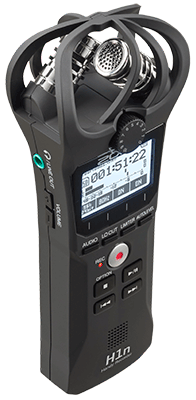

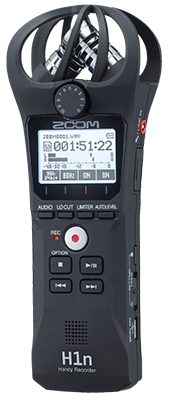

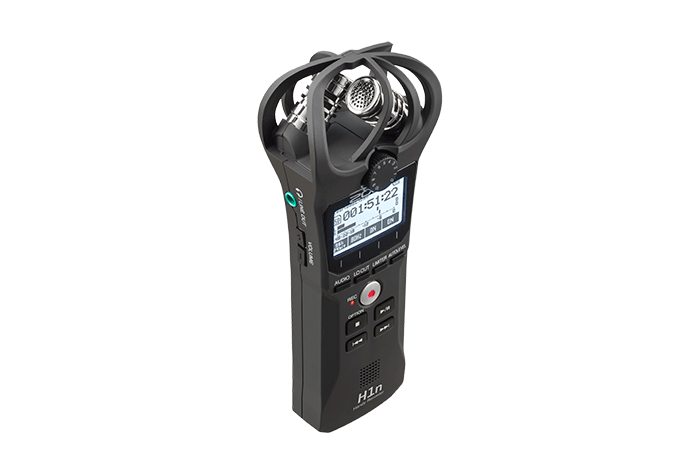

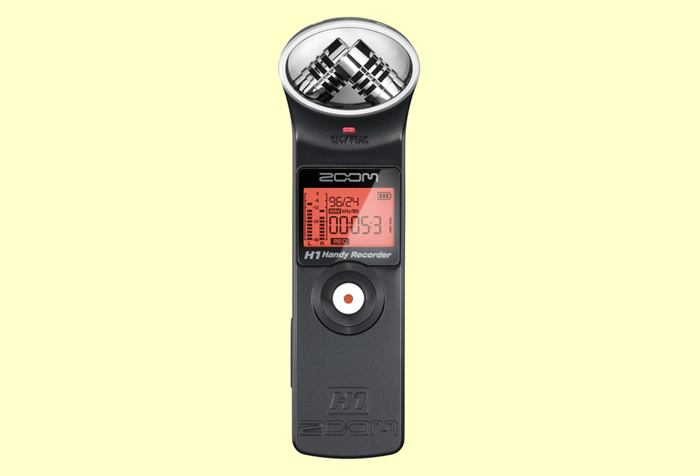

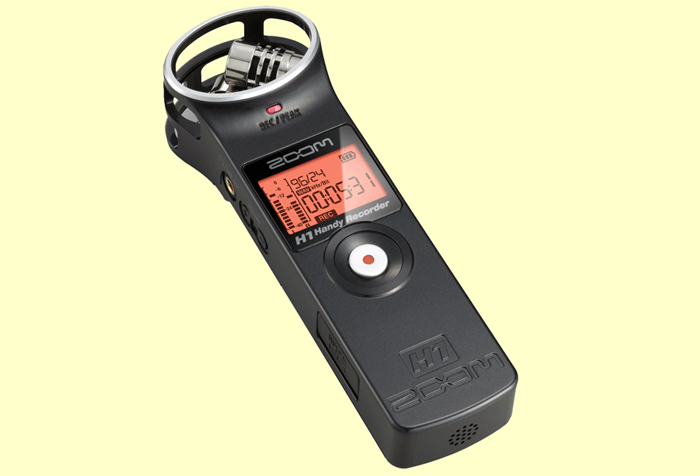

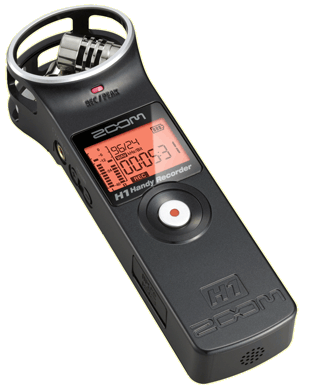

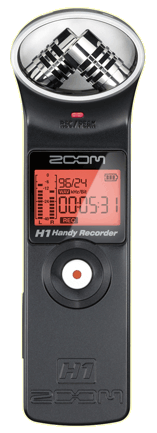

top view and slanted views of the Zoom H1
handy recorder

Recording Formats...
WAV (Quantization: 16/24bit; Sampling Frequency: 44.1/48/96kHz)
MP3 (Bit Rate: 48/56/64/80/96/112/128/160/192/224/256/320kbps;
Sampling Frequency: 44.1kHz)


Zoom H1 Solid State Compact Flash Recorder

A Zoom H1 solid state compact flash recorder is included with
Cetacean Research Technology's SQ26-H1 Underwater Recording System
and is sold separately. Also see pro audio accessories.

Manual: Zoom H1 Recorder (PDF)
  • ZoomH1-1-100Hz-frequencyPlot-fs

    Recording formats available for the Zoom H1 handy recorder are
         WAV (Quantization: 16/24bit; Sampling Frequency: 44.1/48/96kHz) and
         MP3 (Bit Rate: 48/56/64/80/96/112/128/160/192/224/256/320kbps; Sampling Frequency: 44.1kHz).
    Included with Cetacean Research Technology's SQ26-H1 Underwater Recording System and sold separately. Also see Zoom H1 manual (PDF) for more information.

  • ZoomH1-10-50kHz-frequencyPlot-fs

    Recording formats available for the Zoom H1 handy recorder are
         WAV (Quantization: 16/24bit; Sampling Frequency: 44.1/48/96kHz) and
         MP3 (Bit Rate: 48/56/64/80/96/112/128/160/192/224/256/320kbps; Sampling Frequency: 44.1kHz).
    Included with Cetacean Research Technology's SQ26-H1 Underwater Recording System and sold separately. Also see Zoom H1 manual (PDF) for more information.

  • ZoomH1-1-100Hz-frequencyPlot-fs

    Recording formats available for the Zoom H1 handy recorder are
         WAV (Quantization: 16/24bit; Sampling Frequency: 44.1/48/96kHz) and
         MP3 (Bit Rate: 48/56/64/80/96/112/128/160/192/224/256/320kbps; Sampling Frequency: 44.1kHz).
    Included with Cetacean Research Technology's SQ26-H1 Underwater Recording System and sold separately. Also see Zoom H1 manual (PDF) for more information.

  • ZoomH1-10-50kHz-frequencyPlot-fs

    Recording formats available for the Zoom H1 handy recorder are
         WAV (Quantization: 16/24bit; Sampling Frequency: 44.1/48/96kHz) and
         MP3 (Bit Rate: 48/56/64/80/96/112/128/160/192/224/256/320kbps; Sampling Frequency: 44.1kHz).
    Included with Cetacean Research Technology's SQ26-H1 Underwater Recording System and sold separately. Also see Zoom H1 manual (PDF) for more information.
