CR2 hydrophone    for maximum enlargement, click on thumbnail; --- for medium-sized enlargement, scroll down

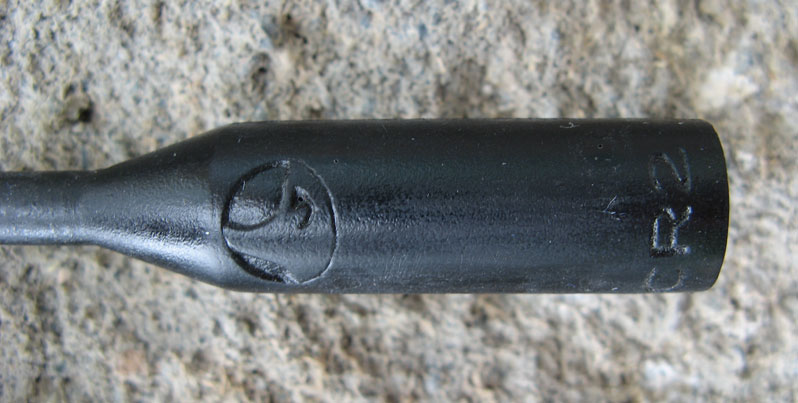

The Cetacean Research™  CR2 hydrophone is ideal for the detection and recording of extremely loud signals. Examples of such loud sources include close-range dolphin echolocation, high-power sonar, large pile drivers, air gun arrays, and underwater explosions. Unlike most hydrophones, the CR2 hydrophone transducer is made from a material that is virtually indestructible. The hydrophones are molded to an extra tough polyurethane-jacketed coaxial cable. The cables can be terminated with either BNC or mono phone plug connectors. Hydrophones are not individually calibrated. Calibrated frequency response measurements can be performed on request.

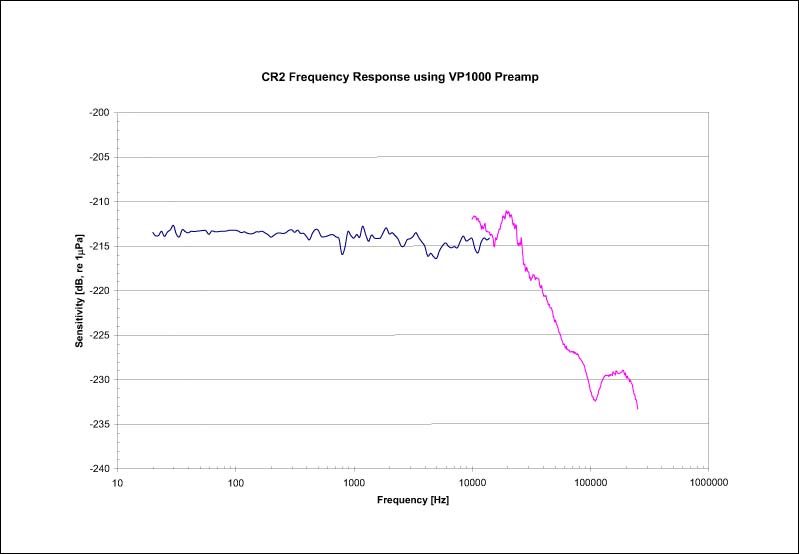

Linear Frequency Range (±3dB) [kHz]		0.002† to 28
Useable Frequency Range (+3/-12dB) [kHz]		0.0004† to 60
Transducer Sensitivity [dB, re 1V/µPa]		-214
Preamplifier Gain [dB]		N/A
SPL Equiv. Self Noise at 1kHz [dB, re 1µPa/√Hz]		68
Power Requirement [Vdc]		N/A
RMS Overload Acoustic Pressure [dB, re 1µPa]		N/A
Maximum Operating Depth [m]		460
Operating Temperature Range [ºC]		-40 to 70
Capacitance [nF]		0.82
Dimensions [mm]		56 L x 14 dia

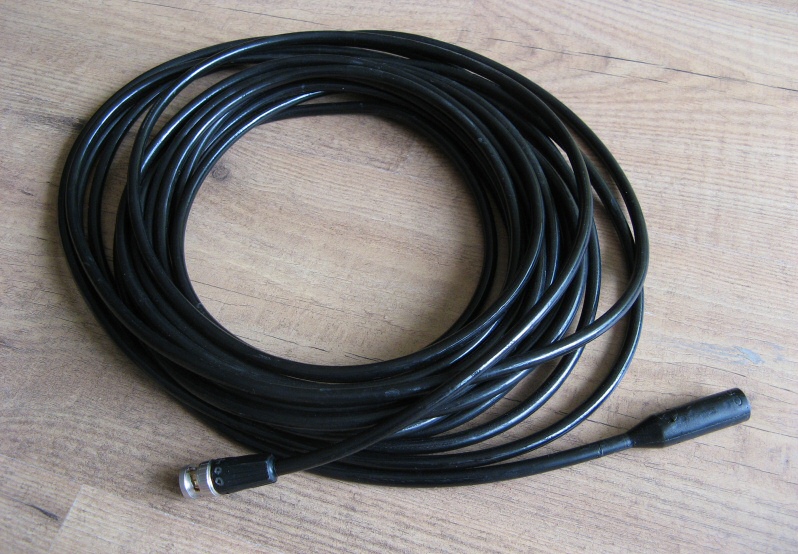

Coaxial Cable Length [m]		10 Cable terminated with male BNC connector (longer cable optional)

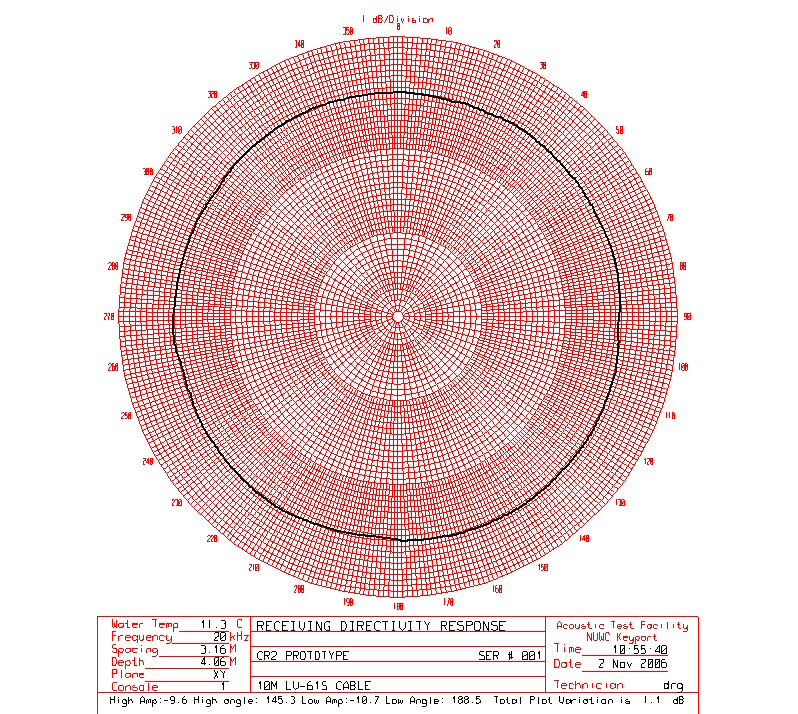

Directionality		omnidirectional below 10kHz
Battery / Connector box		power not required
† Requires a preamplifier with 100M input impedance, such as the Reson VP1000 (PDF) or Reson VP2000 (PDF) preamplifiers. If a preamplifier with 1M input impedance is used, such as thePC200 (PDF), then the low frequency -3dB point will be at 200Hz instead of 2Hz and the -20dB point will be at 20Hz instead of 0.2Hz.

Options extra length ruggedized cable custom orders not listed above hydrophone may be used with either the optional Reson VP1000 (PDF) or Reson VP2000 (PDF) preamplifiers.
