SS03-10 Sea-Phone Hydrophone
The SS03-10 Sea-Phone has been replaced by the SQ26-H1B hydrophone.
The following is retained for reference.
The SS03-10 Sea-Phone is a general purpose hydrophone ideal for whale watching and full audio-band signal detection. It can also be used as a contact microphone or low cost geophone. The Sea-Phone is a great kayaking hydrophone and a wonderful recreational boating accessory. As mentioned in the new gear section of the Nov/Dec 2006 issue of Paddler magazine, the SS03-10 Sea-Phone "opens up the world beneath your hull."

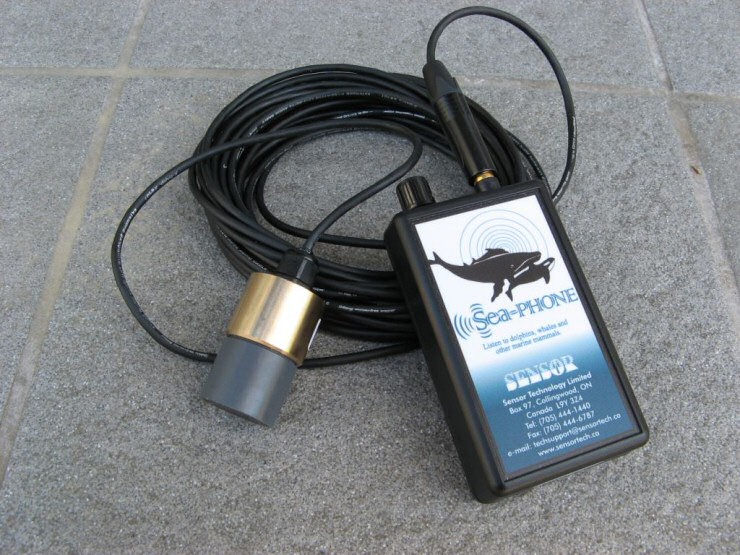

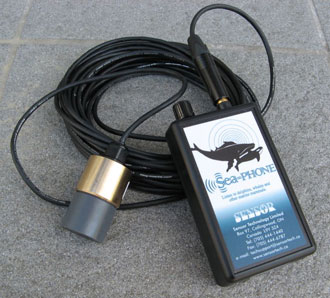

- SSO3-10 Sea-Phone
The SS03-10 Sea-Phone has been updated with the SQ26-H1B hydrophone.

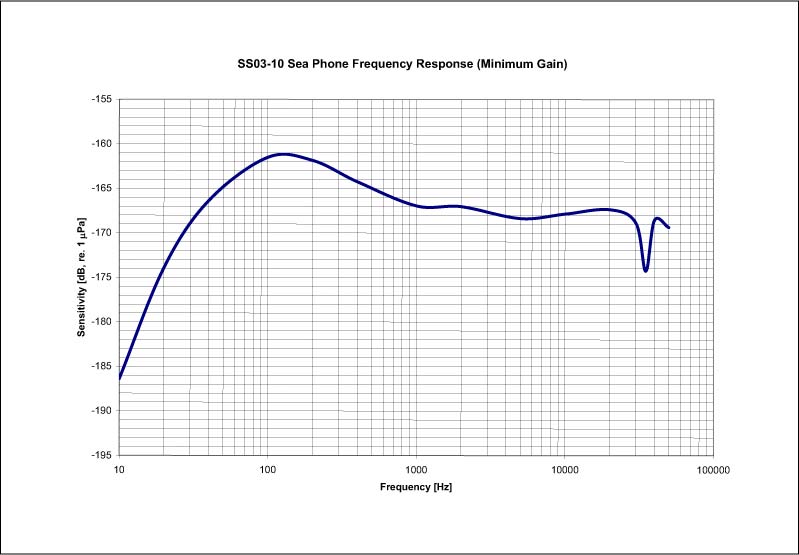

- SSO3-10 Sea-Phone frequency response
The SS03-10 Sea-Phone has been updated with the SQ26-H1B hydrophone.
| Frequency Range [kHz] | 0.020 to 50 |
|---|---|
| Transducer Sensitivity* [dB, re 1V/µPa] | -194 |
| Preamplifier Gain [dB] | 25 |
| Effective Sensitivity* [dB, re 1V/µPa] | -169 |
| SPL Equiv. Self Noise at 1kHz [dB, re 1µPa/√Hz] | 57 |
| Power Requirement [Vdc] | 9 |
| RMS Overload Acoustic Pressure [dB, re 1µPa] | 147 to 154 |
| Maximum Operating Depth [m] | 100 |
| Operating Temperature Range [°C] | -25 to 60 |
| Dimensions [mm] | 70 L x 32 dia. |
| Shielded Cable Length [m] cable includes 1/4" stereo phone plug |
10 or 30 |
| Directionality | omnidirectional below 10kHz |
Applications
- Kayaking
- Recreation
- Tourism
- Environmental science & research
- Educational outreach programs
Cetacean Research Technology has been offering kayaking hydrophones since 1994. We were the first underwater recording specialists to offer kayaking hydrophones at that time, and the SS03-10 continued our long tradition of offering you excellent underwater sound devices to enhance your kayaking experience.
Battery / Connector box
Conformally coated circuit board. Water resistant electronics. Standard signal connection for the Sea-Phone SS03-10 hydrophone is through a 3.5mm stereo phone jack. The hydrophones are powered by a single 9V battery (not included).
| Signal Output | 3.5mm stereo phone jack |
|---|---|
| Battery Life [hours] | 18 |
| Adjustable Gain | 0 - 30 dB |
| Amplifier Console / Power Box Dimensions [cm] | 12.2 long x 6.6 wide x 2.8 high |
